Moment Tensor Axis Colour Update

Paulus Angkodjojo
Paulus Angkodjojo
Software Engineer

For users that look at moment tensors, please be aware that we are changing the arrow colours and improving the legend.

The colours of the moment tensor T and P axes have been updated to align with the colours used in ESG and IMS system:

  • Red for the P axis
  • Blue for the T axis

The legend for the moment tensors now has nice labels to allow you to identify the axes, planes and motions.

You can see this change in the comparison below.

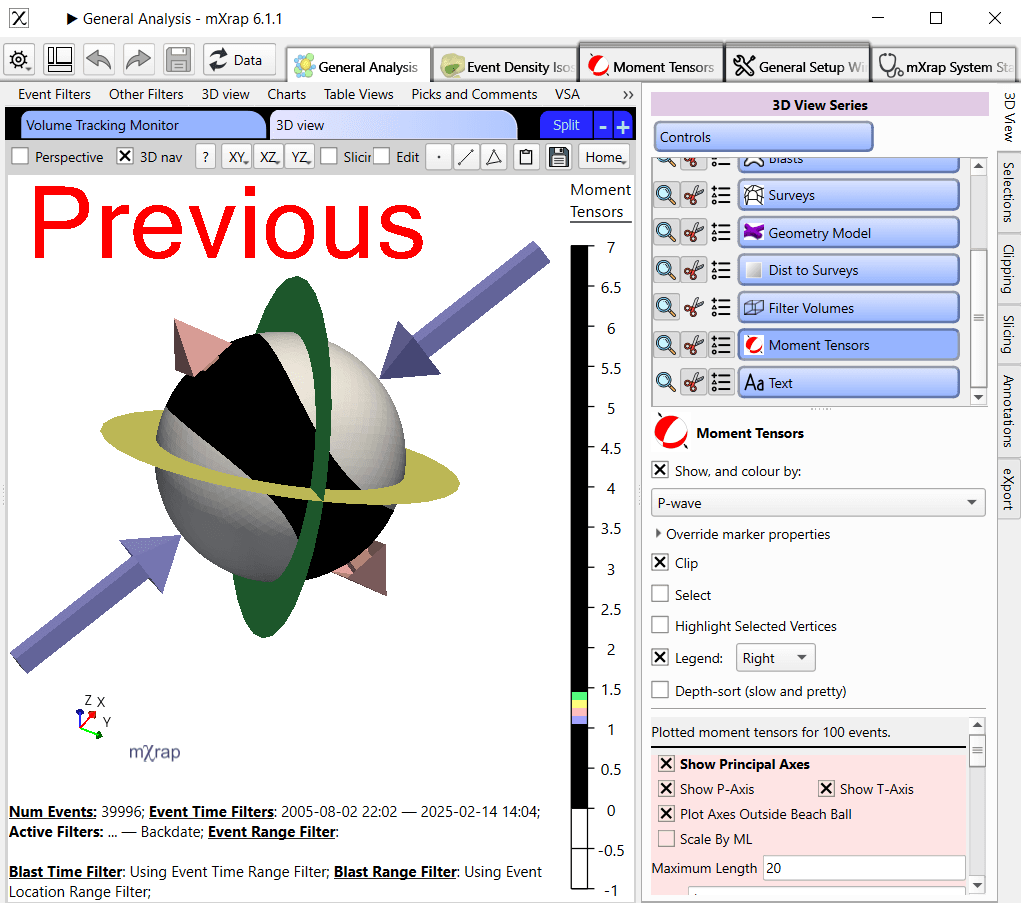

Old Moment Tensor Colours

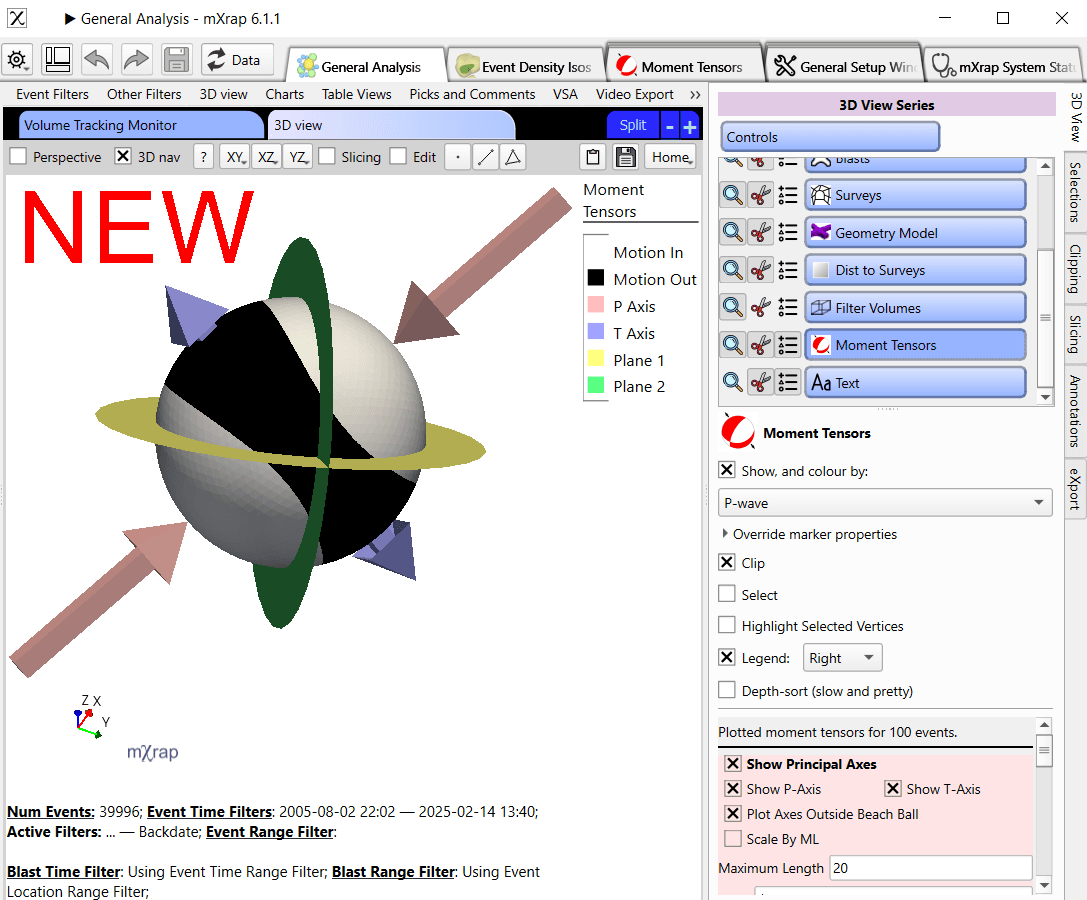

Updated Moment Tensor Colours
